FABRICATED FOOD PREPARATION EQUIPMENTS
Copyright 2011. All rights reserved. Cebu Metal Industries. Joseller Cumbal
DISHWASHING
COOKING
REFRIGERATION
PREPARATION
BAKERY
SERVERY
OTHERS
LAUNDRY
DISHWASHING
AND RACKS
COOKING AND
EXHAUST HOOD
WORK TABLES
AND CABINETS
CANTEEN
AND SERVERY
MAINTENANCE
CHEMICALS
BAR AND
COCKTAILS
S.STEEL WORKTABLE
Dim.(mm): 1500 L x 610 W x 850 H +150
18 ga. T-304 S.S. top plate, nosing,
backsplash, stiffener
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet
Optional:
20 ga. T-304 S.S. mid and bottom shelf
20 ga. T-304 S.S. side and back panel
25 mm dia. S.S. tubular cross bracing
S.STEEL OVERHEAD CABINET
Dim.(mm): 1500 L x 500 W x 600 H
18 ga. T-304 S.S. top plate, nosing,
stiffener
20 ga. T-304 S.S. mid and bottom shelf
20 ga. T-304 S.S. side and back panel,
sliding / swing door assembly with
plastic flush pull prefabricated handle

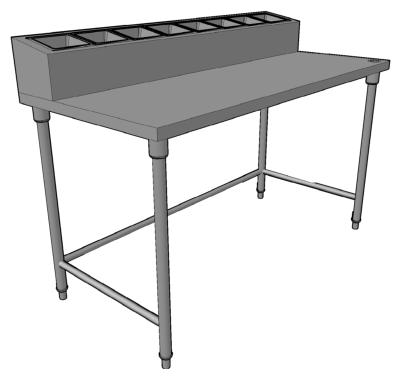

S.STEEL PREPARATION TABLE WITH
CONDIMENTS HOLDER
Dim.(mm): 1200 L x 610 W x 850 H +150
18 ga. T-304 S.S. top plate, nosing,
stiffener, food pan housing
Food pan capacity: 1/3 size x 4” deep
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet
Optional:
20 ga. T-304 S.S. mid and bottom shelf
20 ga. T-304 S.S. side and back panel
25 mm dia. S.S. tubular cross bracing

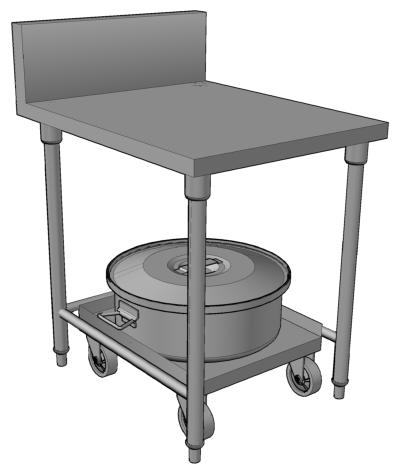

S.STEEL RICE COOKER STAND /
RICE COOKER DOLLY
Dim.(mm): 650 L x 610 W x 850 H +150
18 ga. T-304 S.S. top plate, nosing,
stiffener, backsplash
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet
25 mm dia. S.S. tubular cross bracing
Rice Cooker Dolly Specifications:
20 ga. T-304 S.S. mobile rice
cooker dolly
18 ga. T-304 S.S. stiffener
1 set heavy duty caster wheel
plate swivel type (2-pcs. with brake
and 2-pcs. without brake)

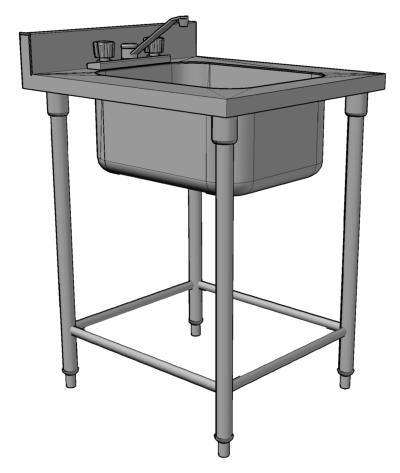

S.STEEL HAND WASH SINK
Dim.(mm): 610 L x 610 W x 850 H +150
18 ga. T-304 S.S. top plate, inverted V
edged nosing, backsplash, stiffener
18 ga. T-304 S.S. sinkbowl
Sink strainer with tail piece 1-1/2” dia.
Optional:
Sink topmount faucet
20 ga. T-304 S.S. side and back panel
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet
25 mm dia. S.S. tubular cross bracing

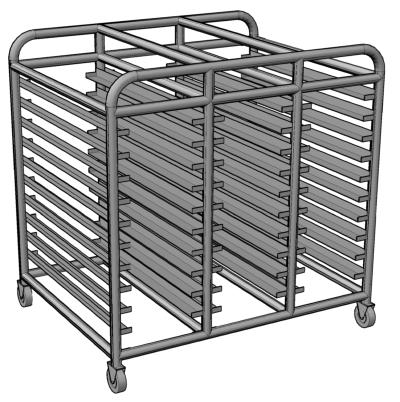

S.STEEL MOBILE COOLING RACK
Dim.(mm): 500 L x 700 W x 1500 H
18 ga. T-304 S.S. angle bar support,
stiffener
25 x 25 mm S.S. square
tubular leg support
1 set heavy duty caster wheel
plate swivel type (2-pcs. with brake
and 2-pcs. without brake)

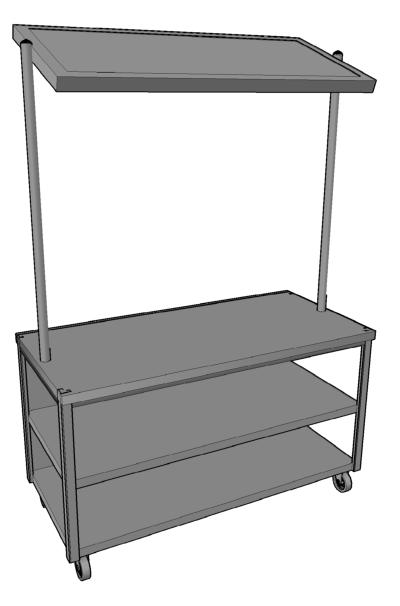

S.STEEL DEMO TABLE
Dim.(mm): 1500 L x 610 W x 850 H +1200
18 ga. T-304 S.S. top plate, nosing,
backsplash, stiffener
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet
20 ga. T-304 S.S. mirror frame
38 mm dia. S.S. tubular leg support
for mirror frame
2" dia. S.S. pre-fabricated tube gussets
Inclusion:
1-pc. mirror glass
Optional:
20 ga. T-304 S.S. mid and bottom shelf
20 ga. T-304 S.S. side and back panel
25 mm dia. S.S. tubular cross bracing

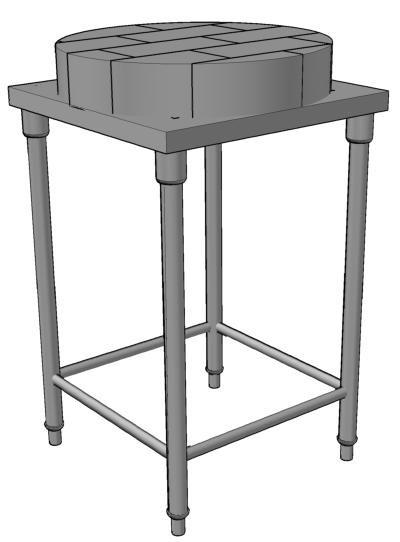

S.STEEL CHOPPING BLOCK
Dim.(mm): 610 L x 610 W x 850 H +150
18 ga. T-304 S.S. chopping board
framing, stiffener
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet
25 mm dia. S.S. tubular cross bracing
Inclusions:
1-pc. wooden/plastic chopping board

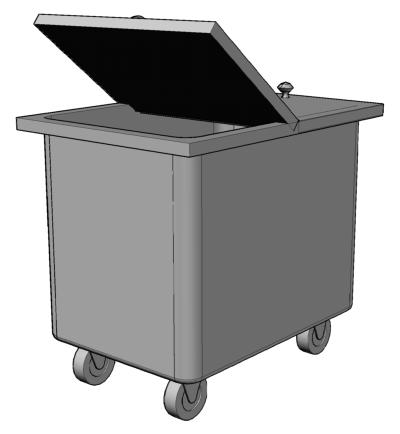

S.STEEL MOBILE FLOUR BIN
Dim.(mm): 500 L x 500 W x 500 H
18 ga. T-304 S.S. flour bin, nosing,
fabricated cover
S.S. piano hinges
1 set heavy duty caster wheel
plate swivel type (2-pcs. with brake
and 2-pcs. without brake)

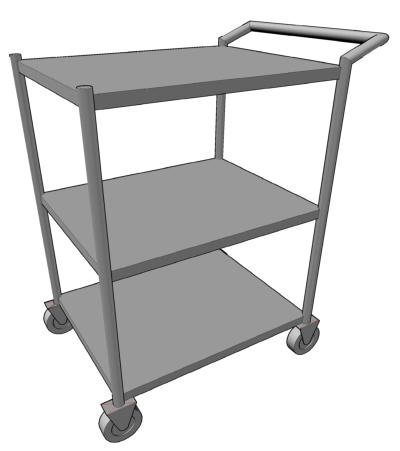

S.STEEL UTILITY CART - 3 LAYERS
Dim.(mm): 750 L x 510 W x 1100 H
18 ga. T-304 S.S. 3-layered shelvings
with inverted V-edged nosing, stiffener
25 mm dia. S.S. tubular legs and
cart handle
1 set heavy duty caster wheel
plate swivel type (2-pcs. with brake
and 2-pcs. without brake)

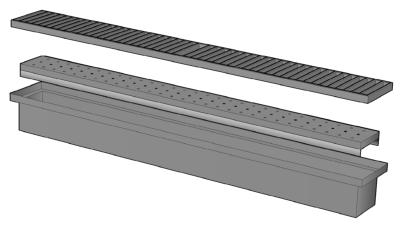

S.STEEL FLOOR GRATING
Dim.(mm): 1000 L x 250 W x 100 H
1/8" thick x 25 mm S.S. flat bar
at 12 mm spacing
16 ga. T-304 S.S. sump pan
3/8" dia. S.S. shafting for anchorage

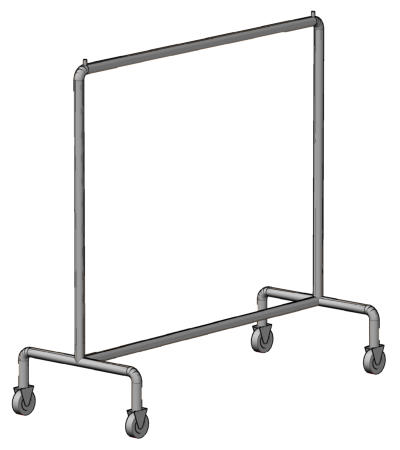

S.STEEL MOBILE MEAT HANGER
Dim.(mm): 1500 L x 550 W x 1800 H
2” dia. S.S. (sched. 40) tubular stand
and horizontal hanger
S.S. pre-fabricated hook hanger
1 set heavy duty caster wheel
plate swivel type (2-pcs. with brake
and 2-pcs. without brake)
You could also reach us
through the following:

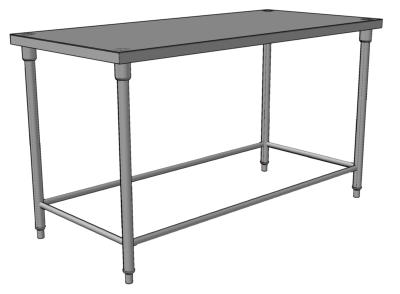

SS Table
Cross-bracing

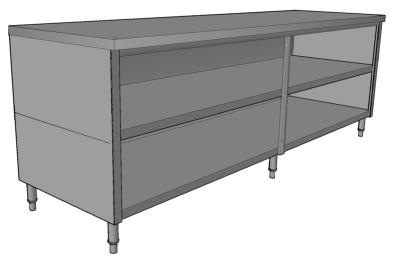

SS Table
semi-enclosed

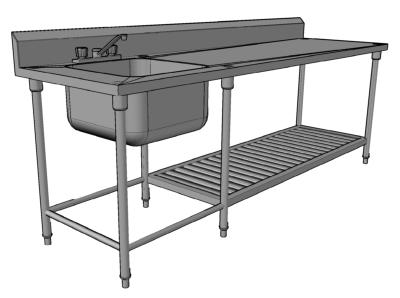

SS sinktable
With slotted bottomshelf

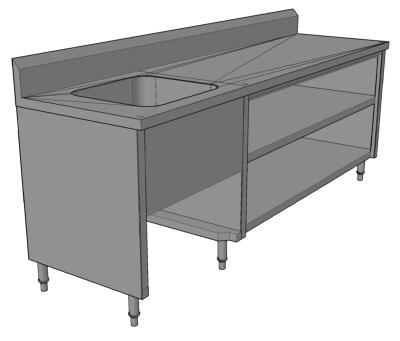

SS open cabinet
with sink

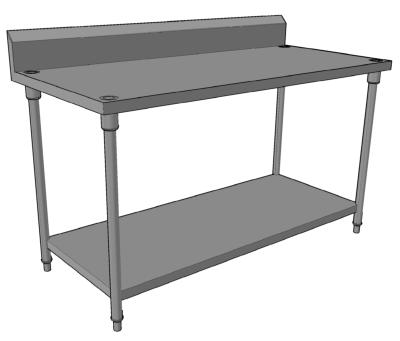

SS Table
With bottomshelf
SS sinktable
Cross-bracing
SS preparation table
with sink, partial mid, bottom
and overshelves

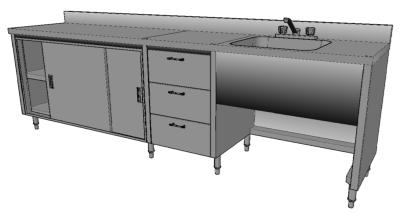

SS cabinet with sink,
drawers and sliding door
SS preparation table
with sink, partial mid, bottom
and overshelves

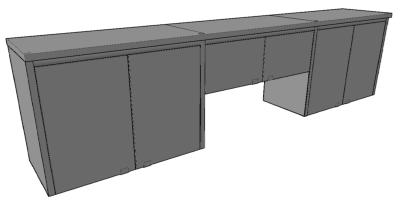

SS cabinet with
swing doors

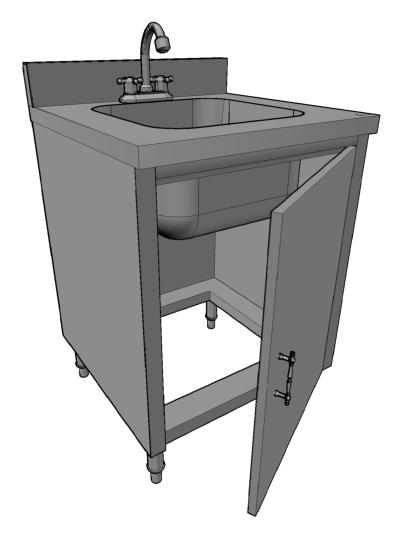

SS handwash sink
close-panelled
SS handwash sink
cross-bracing

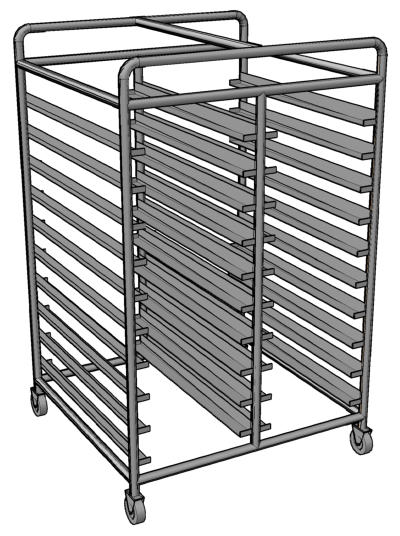

SS mobile cooling rack
(double)
SS mobile cooling rack
(triple)

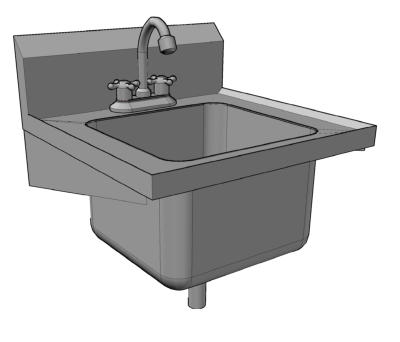

SS handwash sink
wall-mounted

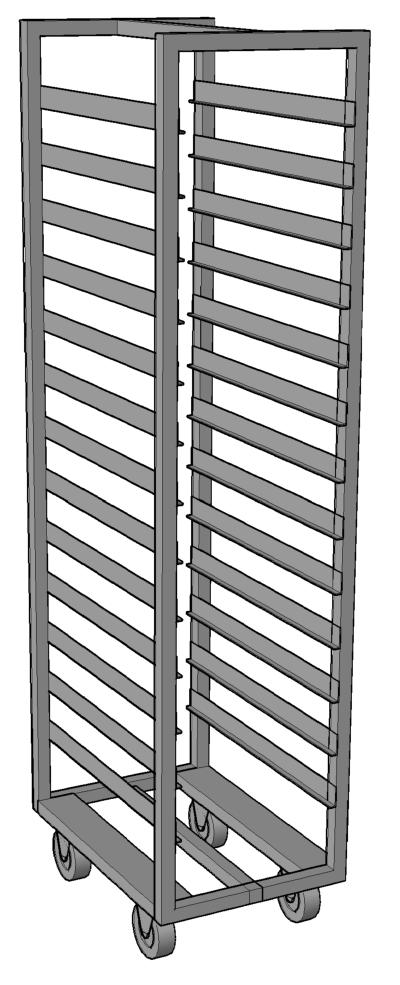

SS mobile cooling rack
(single)

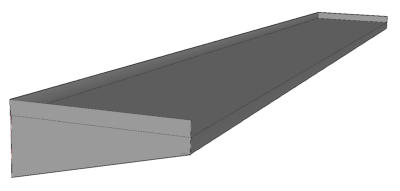

S.STEEL WALL SHELF
Dim.(mm): 1500 L x 300 W x 150 H
18 ga. T-304 S.S. wall shelf
16 ga. T-304 S.S. prefabricated support
bracket at required spacing

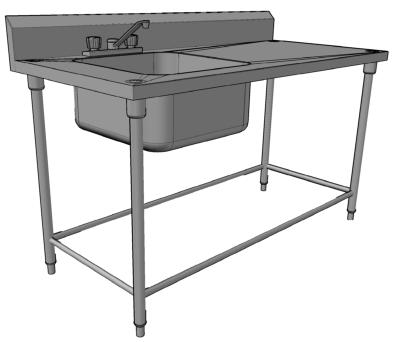

S.STEEL SINKTABLE
Dim.(mm): 1500 L x 610 W x 850 H +150
Sink Dim.(mm): 400 L x 400 W x 300 D
18 ga. T-304 S.S. top plate, nosing,
backsplash, stiffener, sinkbowl
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet
Inclusions:
4" dia. Basket strainer with tail piece
1-1/2" dia. Metal Chrome P-trap
Optional:
20 ga. T-304 S.S. mid and bottom shelf
20 ga. T-304 S.S. side and back panel
25 mm dia. S.S. tubular cross bracing

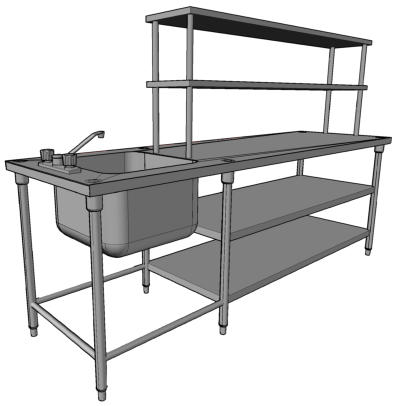

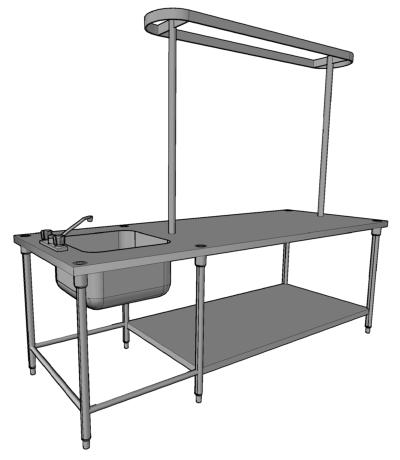

S.STEEL PREPARATION TABLE
with SINK
Dim.(mm): 1500 L x 610 W x 850 H +150
Sink Dim.(mm): 400 L x 400 W x 300 D
18 ga. T-304 S.S. top plate, nosing,
backsplash, stiffener
20 ga. T-304 S.S. mid and bottom shelf
25 mm dia. S.S. tubular cross bracing
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet
Inclusions:
4" dia. Basket strainer with tail piece
1-1/2" dia. Metal Chrome P-trap
Optional:
18 ga. T-304 S.S. sinkbowl
Sink topmount faucet
20 ga. T-304 S.S. double overshelves with
25 mm dia. S.S. tubular leg support
3/16" thick x 2" S.S. flat bar utensil
hanger
1/4" dia. S.S. pre-fabricated hook
hanger

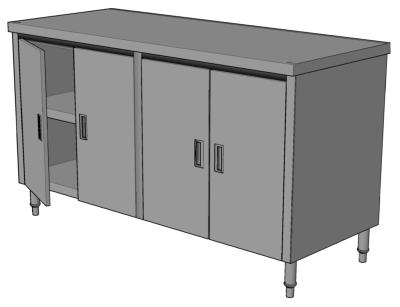

S.STEEL CABINET TABLE
Dim.(mm): 1500 L x 610 W x 850 H +150
18 ga. T-304 4B S.S. top plate, nosing,
backsplash, stiffener
20 ga. T-304 S.S. mid and bottom shelf
20 ga. T-304 S.S. side and back panel,
sliding / swing door assembly with
plastic flush pull prefabricated handle
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet
Optional:
18 ga. T-304 S.S. sinkbowl
Sink topmount faucet
20 ga. T-304 S.S. drawer assembly with
heavy duty drawer guide with full
extension and flush pull handle

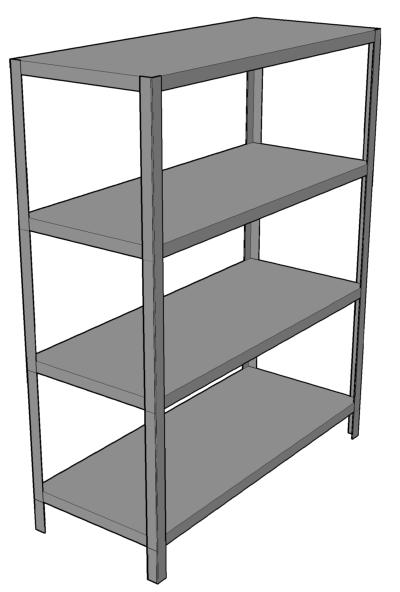

S.STEEL PLAIN RACK - 4 LAYERS
Dim.(mm): 1200 L x 500 W x 1500 H
18 ga. T-304 S.S. plain shelvings,
stiffener
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet

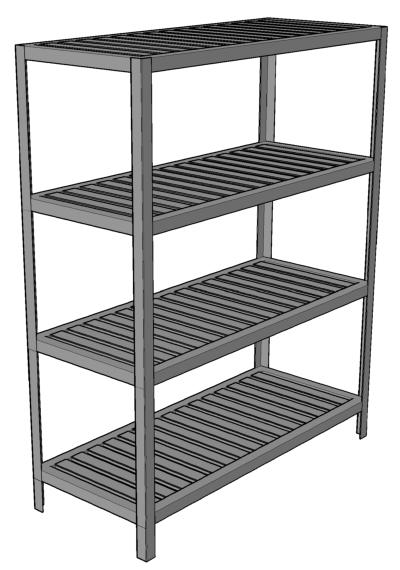

S.STEEL SLOTTED RACK - 4 LAYERS
Dim.(mm): 1200 L x 500 W x 1500 H
18 ga. T-304 S.S. horizontal framing
20 ga. T-304 S.S. slotted shelves
38 mm dia. S.S. tubular leg support
on adjustable bullet type feet
